Roslin Traffic Survey

On 15/8/2018 Roslin Residents started an Occasional Traffic Survey, to assess traffic levels at the key junctions around Roslin. Mainly to highlight the increase in traffic from continuing development.

The results obtained were similar to the 2012 (29th November) survey, however this latest survey was carried out in August during school holidays, which results in a much reduced traffic volume.

The data available for this “Peak hour” period is 8-9am, a single hour.

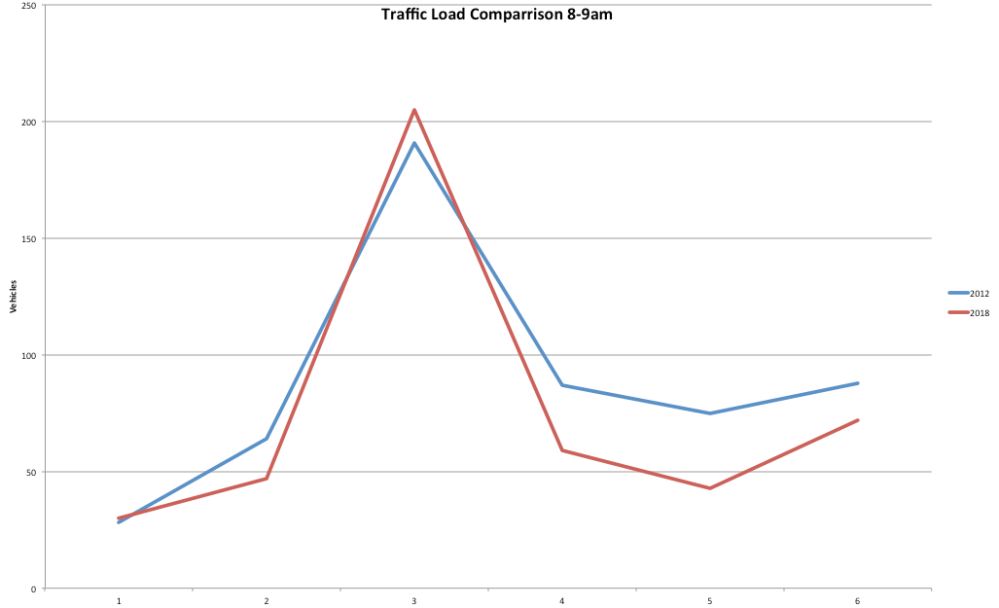

Screen Shot 2018-08-17 at 02.40.09

The number 3.1-3.6 indicate the flow direction. We used the same labelling as available in the Taylor Wimpey planning application documents.

3.1 3.2 3.3 3.4 3.5 3.6
2012 28 64 191 87 75 88
2018 30 47 205 59 43 72
Difference 2 -17 14 -28 -32 -16

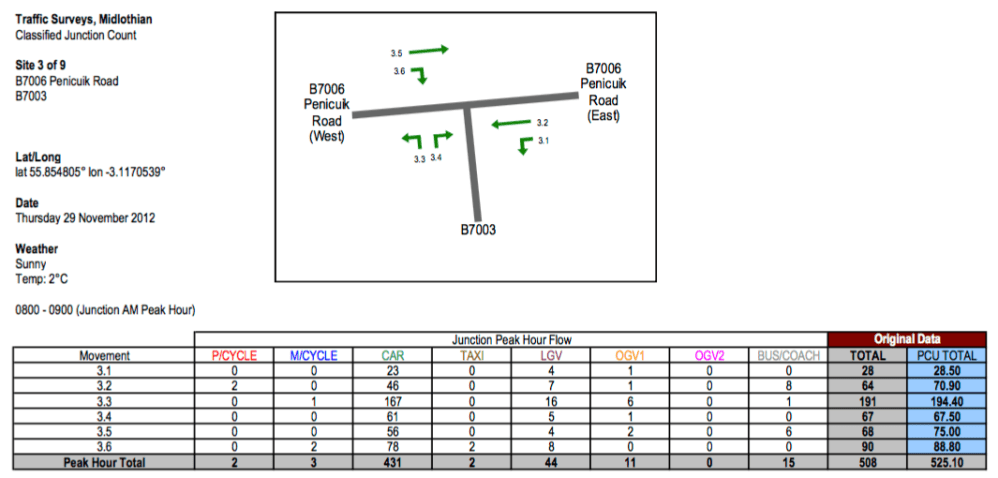

The image below shows the data from the 2012 survey contained in the Taylor Wimpey planning application documents.

Screen Shot 2018-08-17 at 01.00.18

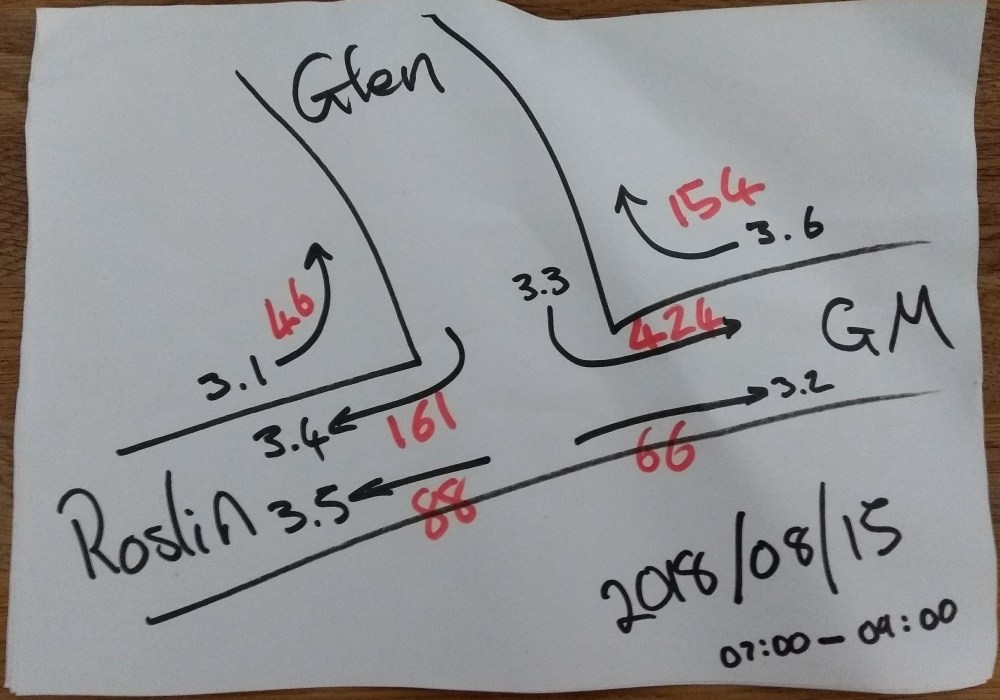

The following image summarises the totals of the complete two hour survey. The survey site and surrounding roads can be viewed on this Roslin OS Map.

IMG_20180816_235901275~2

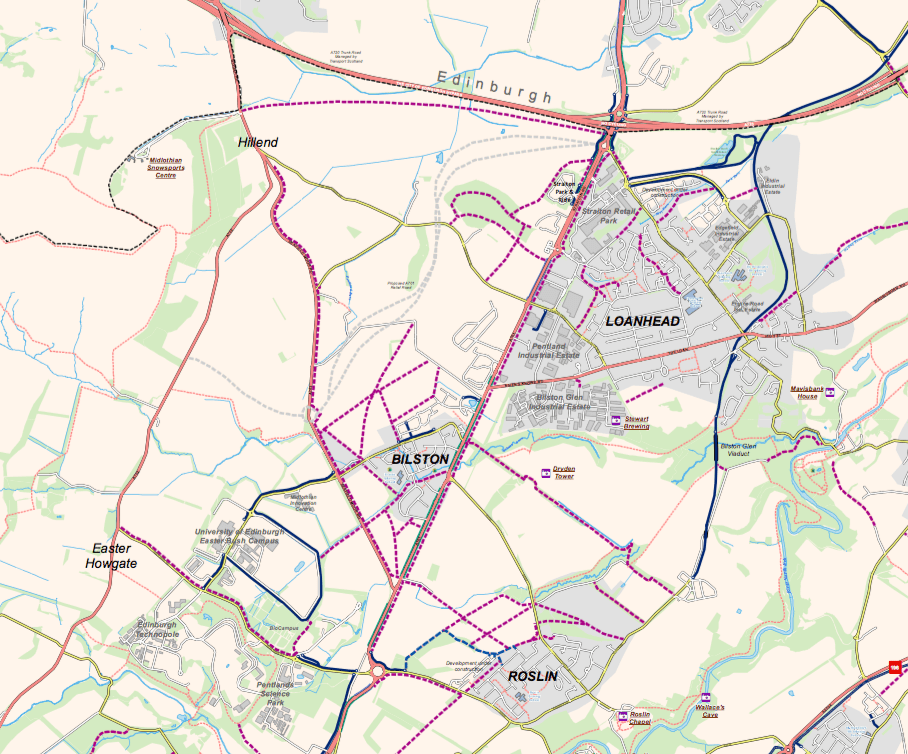

Proposed A701 Bypass

Screen Shot 2018-08-17 at 13.35.49

Notes on method

  • Sample period was 5 minutes, aligned hourly
  • Three folk used per sample site, two counting traffic, one monitoring the time
  • Roles rotated every 15 minutes to minimise human error in the dataset
  • Surveys performed during peak morning period, 7-9am. Afternoon assumed to be a spread reverse of this.

Related Links

Midlothian Active Travel Strategy
